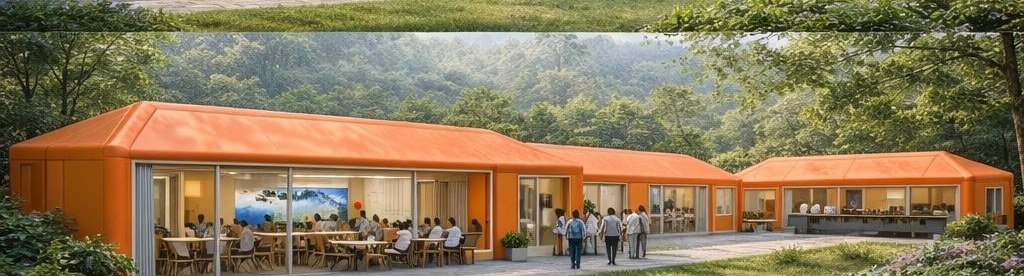

Orange inflatable membrane complexes shown across different settings and times of day

PRODUCT RANGE / FULL SPECIFICATIONS

Product range

Four families, eighteen models — from an 8.42 m² single-occupancy pod to a 32 × 36 × 13 m wide-span hangar. Every figure below is a factory-rated value; non-standard sizes are tooled to the project.

7 accommodation2 emergency2 wide-span7 rescueWalls 15–75 cmCustom tooling

The TANDA range covers four families. Accommodation: seven models — UMI Pod (8.42 m²), FC Cabin, LJ Veranda, QY Cabin, MG Dome, JX Hall (to 8 × 10 m) and YX Rooftop — with 15–20 cm walls. Emergency buildings: two classes — command and office (10–20 cm walls) and accommodation (20 cm walls, to 12 × 8 m). Wide-span: large-span halls from 10 × 20 × H5 m to 30 × 40 × H15 m, and a hangar at 32 × 36 × H13 m on a 180° arc, with 20–75 cm walls. Water-rescue and evacuation equipment: seven items — floating bridge, flood barrier, observation tower, evacuation slide, evacuation walkway, vehicle recovery mat and stretcher. All structures are rated above Beaufort 8 with gusts to 10, across −45 to 60 °C.

SERIES 01

Accommodation

For camps, lodges and field basing. Wall thickness 15 or 20 cm, U-value 0.5–0.64 W/m²·K, roof UDL not below 300 kg. On-water deployment available across the family.

UMI Pod — Compact
UMI — Compact

UMI Pod

The smallest standalone unit — Ø3.2 m circular plan, 8.42 m². Fits where a rectangular cabin will not: on decks, slopes, treetops or water.

  • R — Ø3.2 × H1.85 m / 8.42 m²
  • L — Ø3.2 × H1.85 m
Wall thickness15 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadnot rated for load
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional

Enquire about UMI

FC Cabin — Expedition
FC — Expedition

FC Cabin

The workhorse, in four sizes. The 4 × 4 m R variant is the most-ordered camp unit; packs down to Ø0.5 × 1.5 m at 128 kg.

  • R — 4.0 × 4.0 × H2.8 m
  • L — 4.0 × 3.8 × H3.1 m
  • M — 4.0 × 3.0 × H2.5 m
  • S — 3.0 × 2.0 × H2.2 m
Wall thickness15 / 20 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional
Packed size (Ø × length)Ø0.5 × 1.5 m · 128 kg

Enquire about FC

LJ Veranda — Hospitality
LJ — Hospitality

LJ Veranda

Adds an 11–12 m² covered veranda. Built for premium lodges and guest reception. U-value down to 0.5 W/m²·K.

  • R — 6.0 × 5.0 × H3.2 m
  • L — 5.5 × 5.0 × H3.2 m
  • + veranda 11–12 m²
Wall thickness15 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 W/m²·K
On-water deploymentoptional
Packed size (Ø × length)Ø0.9 × 1.6 m · 240 kg

Enquire about LJ

QY Cabin — All-round
QY — All-round

QY Cabin

The price-to-size sweet spot. Wall thickness 15 or 20 cm. The default choice for volume rollouts across eco-camps.

  • R — 3.7 × 5.0 × H3.2 m
  • L — 4.0 × 5.0 × H3.2 m
Wall thickness15 / 20 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional
Packed size (Ø × length)Ø0.6 × 1.6 m · 140 kg

Enquire about QY

MG Dome — Signature
MG — Signature

MG Dome

Circular plan in Ø5 m and Ø8 m, no internal columns. A regional silhouette for steppe and desert camps.

  • M — Ø5.0 × H3.0 m
  • L — Ø8.0 × H4.0 m
Wall thickness15 / 20 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional
Packed size (Ø × length)Ø0.6 × 1.2 m × 2 · 175 kg

Enquire about MG

JX Hall — Multi-purpose
JX — Multi-purpose

JX Hall

Up to 8 × 10 m of column-free space — lecture halls, rehearsal rooms, performance space or shared accommodation.

  • R — 6.0 × 8.0 × H3.5 m
  • L — 8.0 × 10.0 × H3.5 m
Wall thickness15 / 20 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional
Packed size (Ø × length)Ø1.2 × 1.6 m · 384 kg

Enquire about JX

YX Rooftop — Vehicle-mounted
YX — Vehicle-mounted

YX Rooftop

A 1.5 × 2.3 m rooftop unit at 16 kg total. Fits most SUVs, pickups and sedans, and works free-standing on the ground.

  • R — 1.5 × 2.3 × H1.5 m
Wall thickness—
Operating range5 ~ 30 °C
Mass per m²16 kg total
Roof loadnot rated for load
Wind rating≤ 8 BFT
U-value2.68 – 3.66 W/m²·K
On-water deploymentoptional

Enquire about YX

SERIES 02

Emergency buildings

For government stockpiles, civil defence reserves and humanitarian relief. TPU or PVC membrane to suit the climate band. Foldable, low warehouse footprint, built for batch deployment and cross-region redistribution.

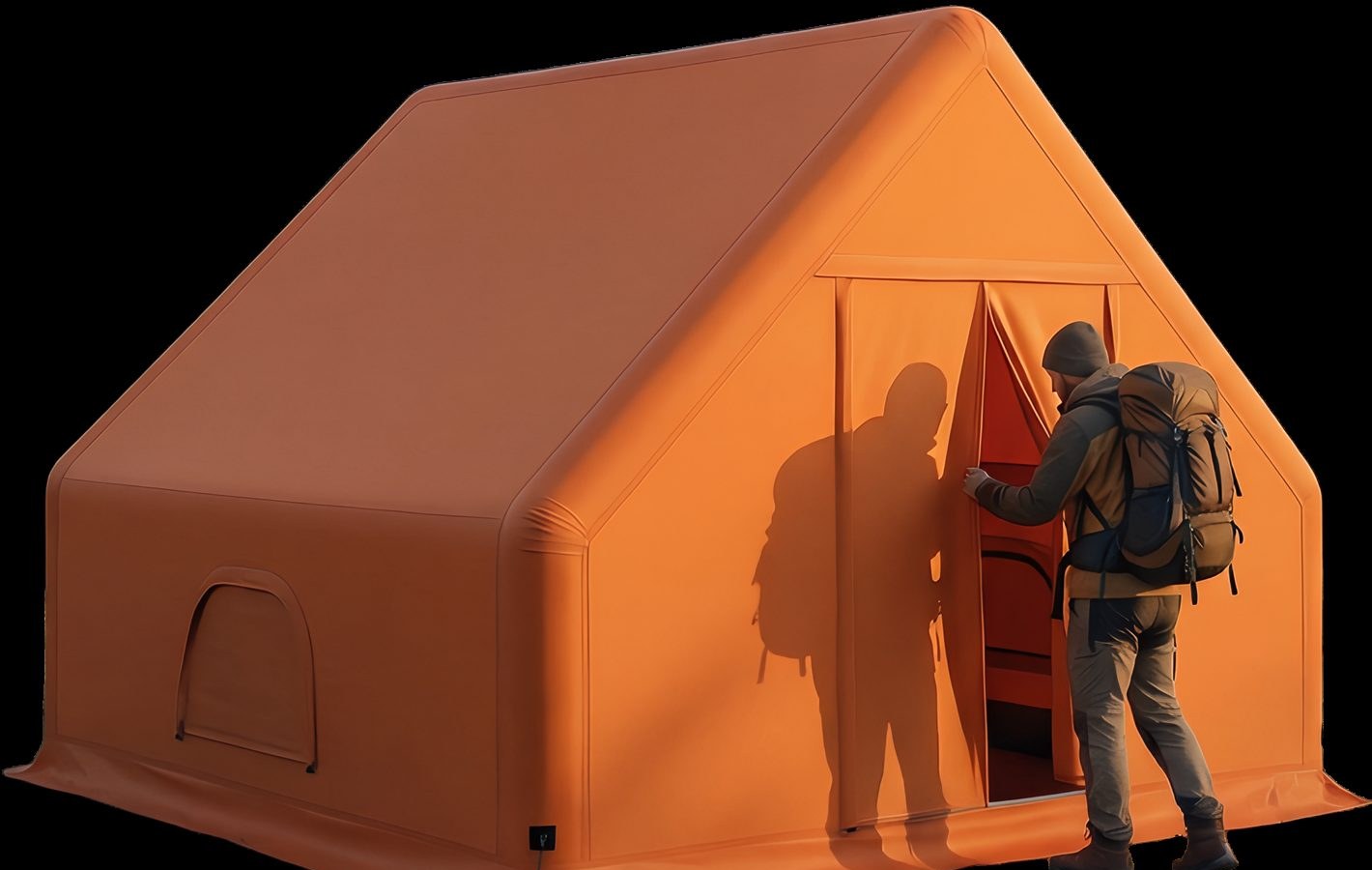

Command & Office series — Emergency
OPS — Emergency

Command & Office series

10–20 cm walls, four sizes. Forward command posts, field offices and communications rooms.

  • R — 4.0 × 4.0 × H2.8 m
  • L — 4.0 × 3.8 × H3.1 m
  • M — 4.0 × 3.0 × H2.5 m
  • S — 3.0 × 2.0 × H2.2 m
Wall thickness10 – 20 cm
Operating rangeTPU −41 ~ 65 °C / PVC −15 ~ 65 °C
Mass per m²8 – 10 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional

Enquire about OPS

Accommodation series — Emergency
ACC — Emergency

Accommodation series

20 cm walls, five sizes from 6 × 4 m to 12 × 8 m. Mid-scale displaced-persons shelter, medical care and logistics support.

  • 12 × 8 m
  • 8 × 8 m
  • 8 × 6 m
  • 6 × 5 m
  • 6 × 4 m
  • H 3.5 m
Wall thickness20 cm
Operating rangeTPU −41 ~ 65 °C / PVC −15 ~ 65 °C
Mass per m²8 – 10 kg/m²
Roof loadUDL ≥300 kg · point ≥100 kg
Wind rating> 8 BFT · gust 10
U-value0.5 – 0.64 W/m²·K
On-water deploymentoptional

Enquire about ACC

SERIES 03

Wide-span

For venues, temporary plant, equipment cover and hangarage. Wall thickness rises to 75 cm with span; roof UDL not below 400 kg with a mid-span point load not below 150 kg.

DZFW Large-Span Hall — Venue / plant
DZFW — Venue / plant

DZFW Large-Span Hall

From 10 × 20 × H5 m to 30 × 40 × H15 m, wall thickness rising to 75 cm with span. Temporary production, sports venues, mass shelter.

  • 10 × 20 × H5 m — wall 20 cm
  • 20 × 20 × H10 m — wall 30 cm
  • 20 × 30 × H10 m — wall 50 cm
  • 30 × 40 × H15 m — wall 75 cm
Wall thickness20 – 75 cm
Operating range−45 ~ 60 °C
Mass per m²≈8 kg/m²
Roof loadUDL ≥300–400 kg · point ≥100–150 kg
Wind rating> 8 BFT · gust 10
U-value0.64 – 0.85 W/m²·K
On-water deploymentoptional

Enquire about DZFW

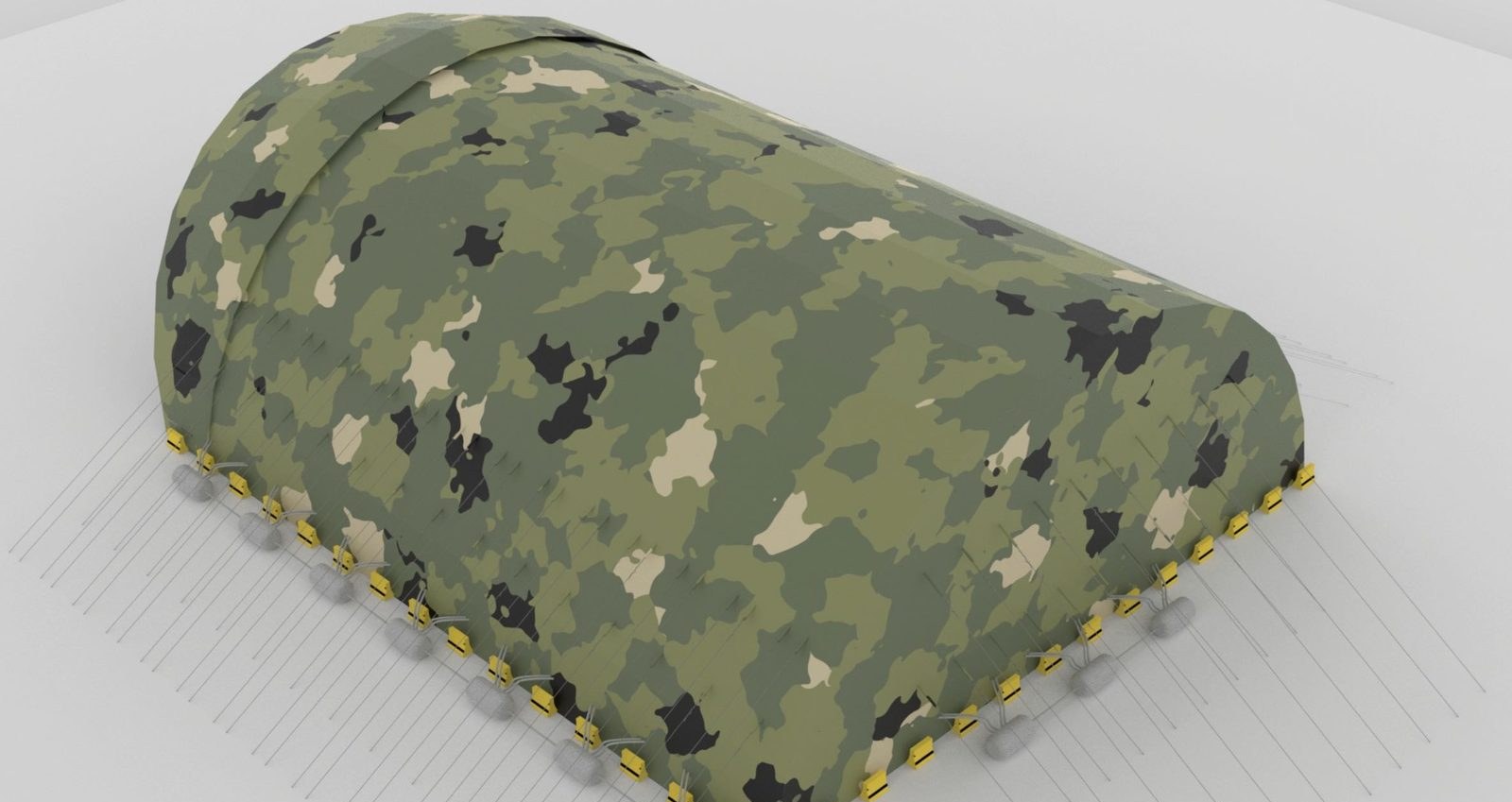

DZJK Hangar — Wide span
DZJK — Wide span

DZJK Hangar

32 m wide × 36 m long × 13 m high, 180° arc, 75 cm walls. Full-envelope cover for aircraft and other outsize equipment.

  • W 32 m × L 36 m × H 13 m
  • arc 180°
Wall thickness75 cm
Operating range−45 ~ 60 °C
Mass per m²≈6 – 10 kg/m²
Roof loadUDL ≥400 kg · point ≥150 kg
Wind rating> 8 BFT · gust 10
U-value> 0.8 W/m²·K
On-water deploymentoptional

Enquire about DZJK

SERIES 04

Water rescue & evacuation

Non-building rescue equipment. Inflation and assembly generally inside five minutes; dimensions made to the situation.

Floating bridge / jetty — Water
PB — Water

Floating bridge / jetty

W2.5 × L9 m, customisable, deployed in 5–10 minutes. Foot and vehicle traffic, small-craft mooring.

DimensionsW 2.5 × L 9 m · customisable
Deck thickness20 – 75 cm
Operating rangeTPU −41 ~ 65 °C / PVC −15 ~ 65 °C
Deployment time5 – 10 min
Load capacityper size & deck thickness

Enquire about PB

Flood barrier — Water
WB — Water

Flood barrier

Inflation and assembly under 5 minutes each. Dams, rivers, underground car parks and floodwater diversion.

Dimensionsmade to order
Mass per m²> 10 kg/m
Deployment timeinflate ≤5 min · assemble ≤5 min
Operating range0 ~ 50 °C
Load capacityplatform ≤500 kg/m² · point ≤100 kg

Enquire about WB

Observation tower — Water
WT — Water

Observation tower

Ø1.2 m tower under 100 kg total, 240 hours continuous duty. Deploys on ground, water, vehicle roof or building roof.

DimensionsØ1.2 × H2.2 + 0.6 m · customisable
Mass per m²< 100 kg
Deployment timeinflate > 5 min
Operating range−20 ~ 40 °C
Continuous duty240 h continuous
Load capacityplatform ≤200 kg/m² · point ≤100 kg
Wind rating≤ 8 BFT

Enquire about WT

Evacuation slide — Evacuation
ES — Evacuation

Evacuation slide

Inflation and assembly under 5 minutes each, 720 hours continuous duty. Rapid descent from height.

Dimensionsmade to order
Mass per m²40 kg+/m²
Deployment timeinflate ≤5 min · assemble ≤5 min
Operating range−20 ~ 40 °C
Continuous duty720 h continuous
Load capacityplatform ≤500 kg/m² · point ≤100 kg
Wind rating≤ 8 BFT

Enquire about ES

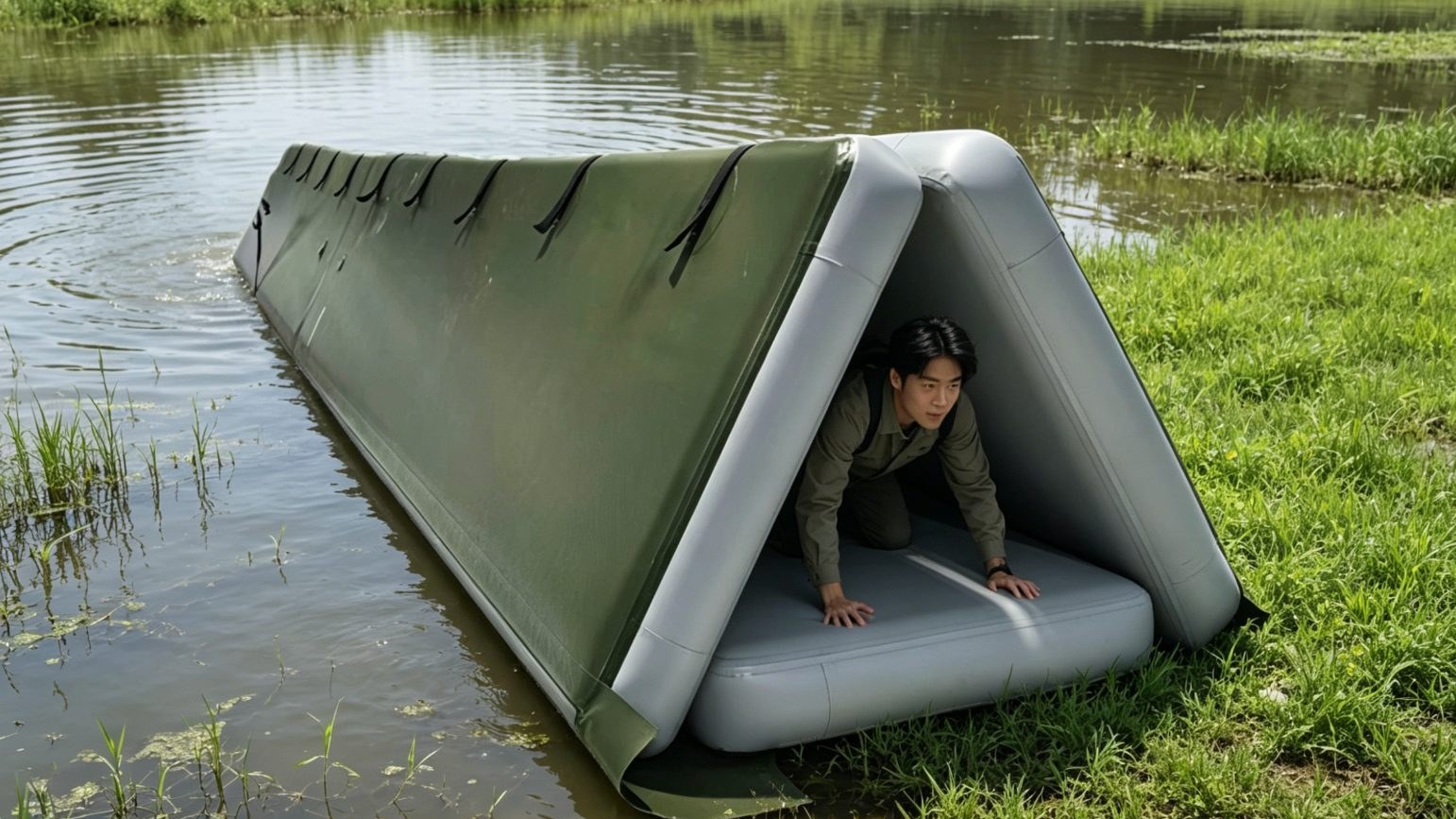

Evacuation walkway — Evacuation
EC — Evacuation

Evacuation walkway

Personnel passage across water, marsh, mud, dunes and rubble — ground that will not bear weight.

Dimensionsmade to order
Mass per m²40 kg+
Deployment timeinflate ≤5 min · assemble ≤5 min
Operating range−20 ~ 50 °C
Load capacityplatform ≤500 kg/m² · point ≤100 kg

Enquire about EC

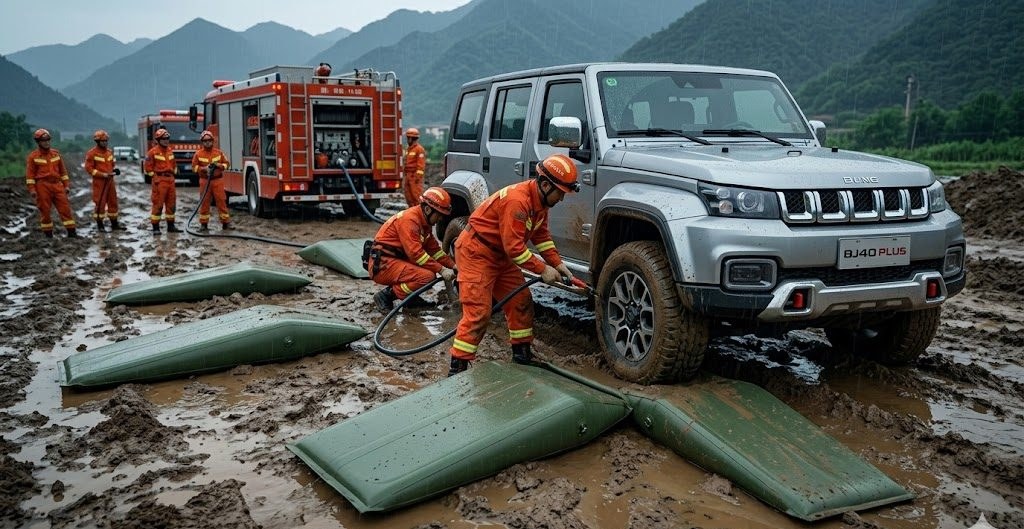

Vehicle recovery mat — Evacuation
VR — Evacuation

Vehicle recovery mat

From 5 kg, platform capacity above 1 tonne/m². Frees vehicles bogged in mud, sand or wetland.

Dimensionsmade to order
Mass per m²5 kg+
Deployment timeinflate ≤5 min · assemble ≤5 min
Operating range−20 ~ 50 °C
Load capacityplatform > 1 t/m²

Enquire about VR

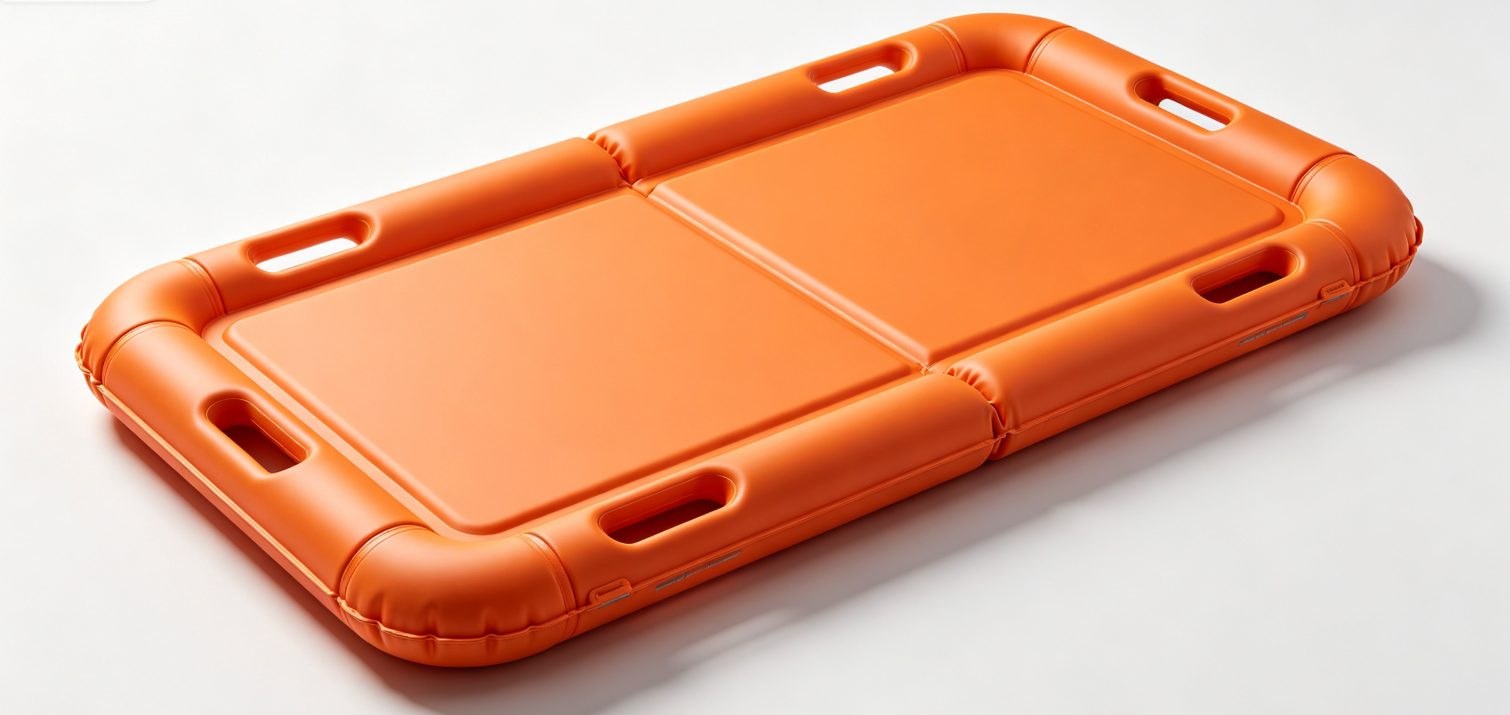

Inflatable stretcher — Evacuation
ST — Evacuation

Inflatable stretcher

From 5 kg, 720 hours continuous duty. Casualty transfer.

Dimensionsmade to order
Mass per m²5 kg+
Operating range−20 ~ 40 °C
Continuous duty720 h continuous
Load capacityplatform ≤500 kg/m² · point ≤100 kg

Enquire about ST

PACKED DIMENSIONS

Packing & transport

Deflated and rolled, each unit is a cylinder one person can carry and load. The figures below are measured on standard R variants — this is the hardest advantage the system holds over container accommodation.

Packing & transport
ModelPacked size (Ø × length)Mass
FC Cabin Ø0.5 × 1.5 m 128 kg
LJ Veranda Ø0.9 × 1.6 m 240 kg
QY Cabin Ø0.6 × 1.6 m 140 kg
MG Dome Ø0.6 × 1.2 m × 2 175 kg
JX Hall Ø1.2 × 1.6 m 384 kg

Figures are for standard R variants, tolerance ±5 kg. Contact us for L variants and custom builds.

OPTIONAL CONFIGURATION

Options & fit-out

None of these is standard; they are combined per project. This is the part hospitality operators care about most once the structure is settled.

Interior of an inflatable membrane pod fitted out as a suite with bed and private bathroom
SANITARY

Monolithic bathroom pod

Sited inside or outside the unit. Formed as a single piece — no on-site masonry and no waterproofing trade.

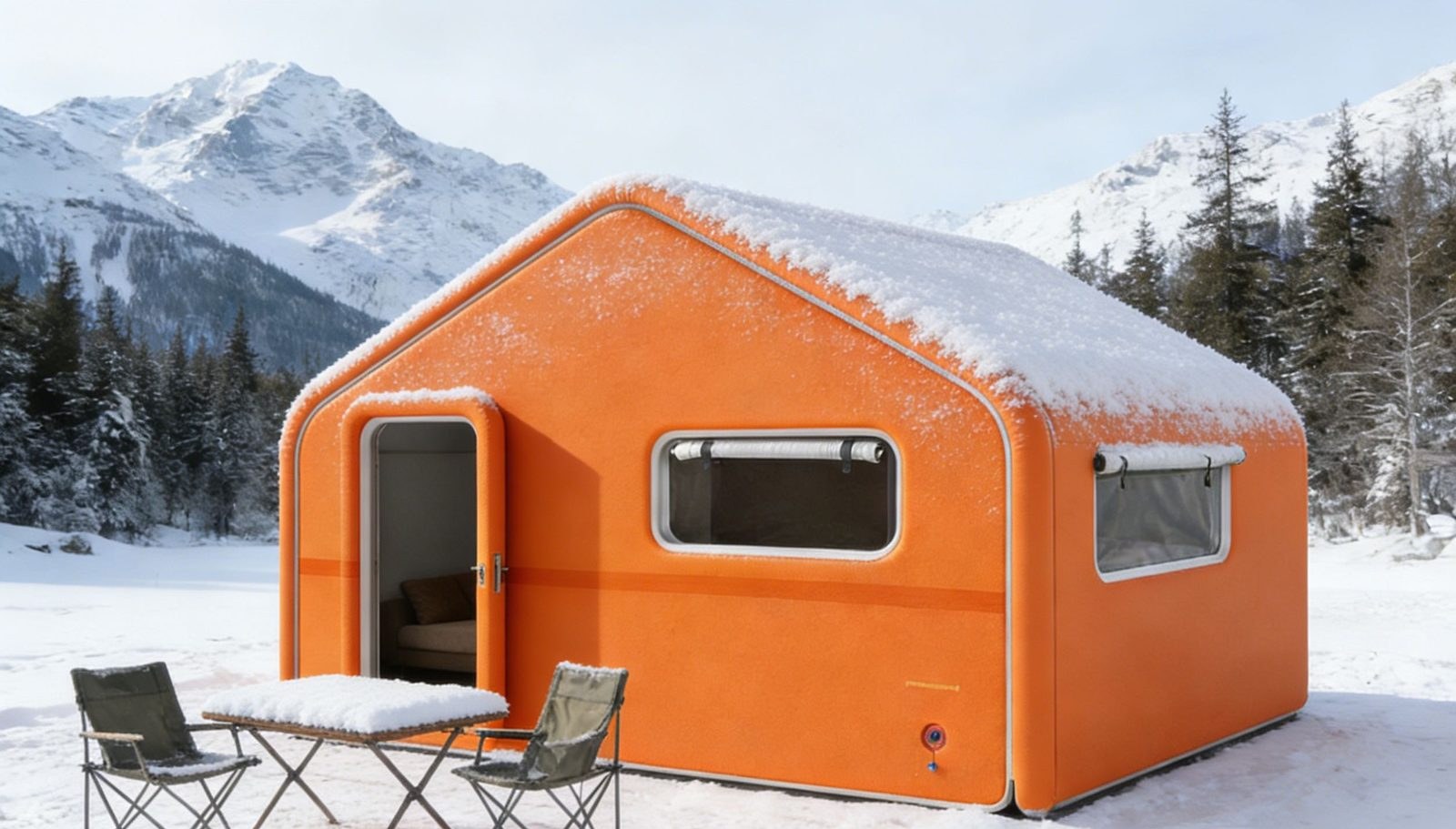

Orange inflatable membrane pod in snow with outdoor table and chairs
HVAC

Portable air conditioning

No installation. Fast heating and cooling with independent dehumidification, in 1, 1.5 and 2 HP to suit floor area.

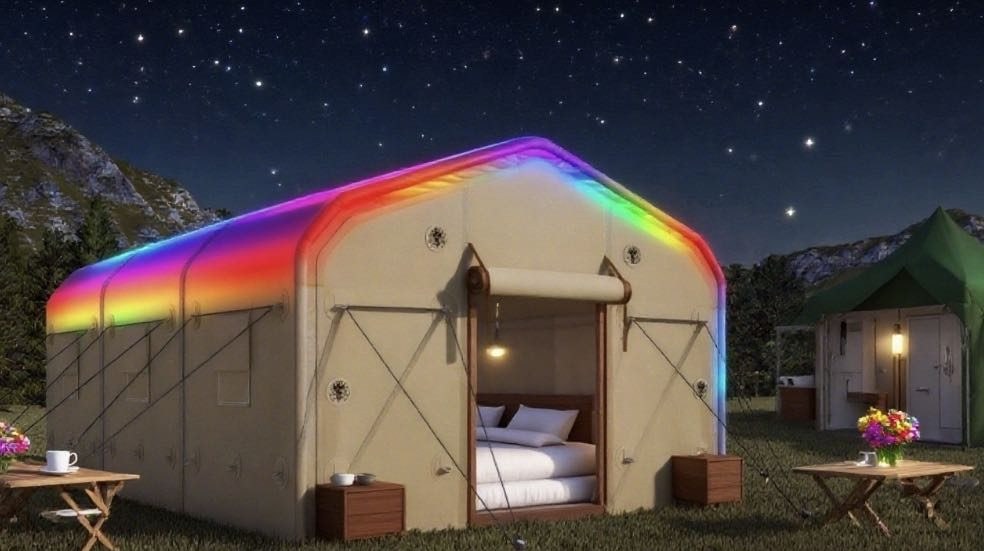

Inflatable membrane pod lit at night with its outline picked out in light
HOSPITALITY

Hotel linen & amenities

Furniture, linen and toiletries supplied as a set, specified to your star rating.

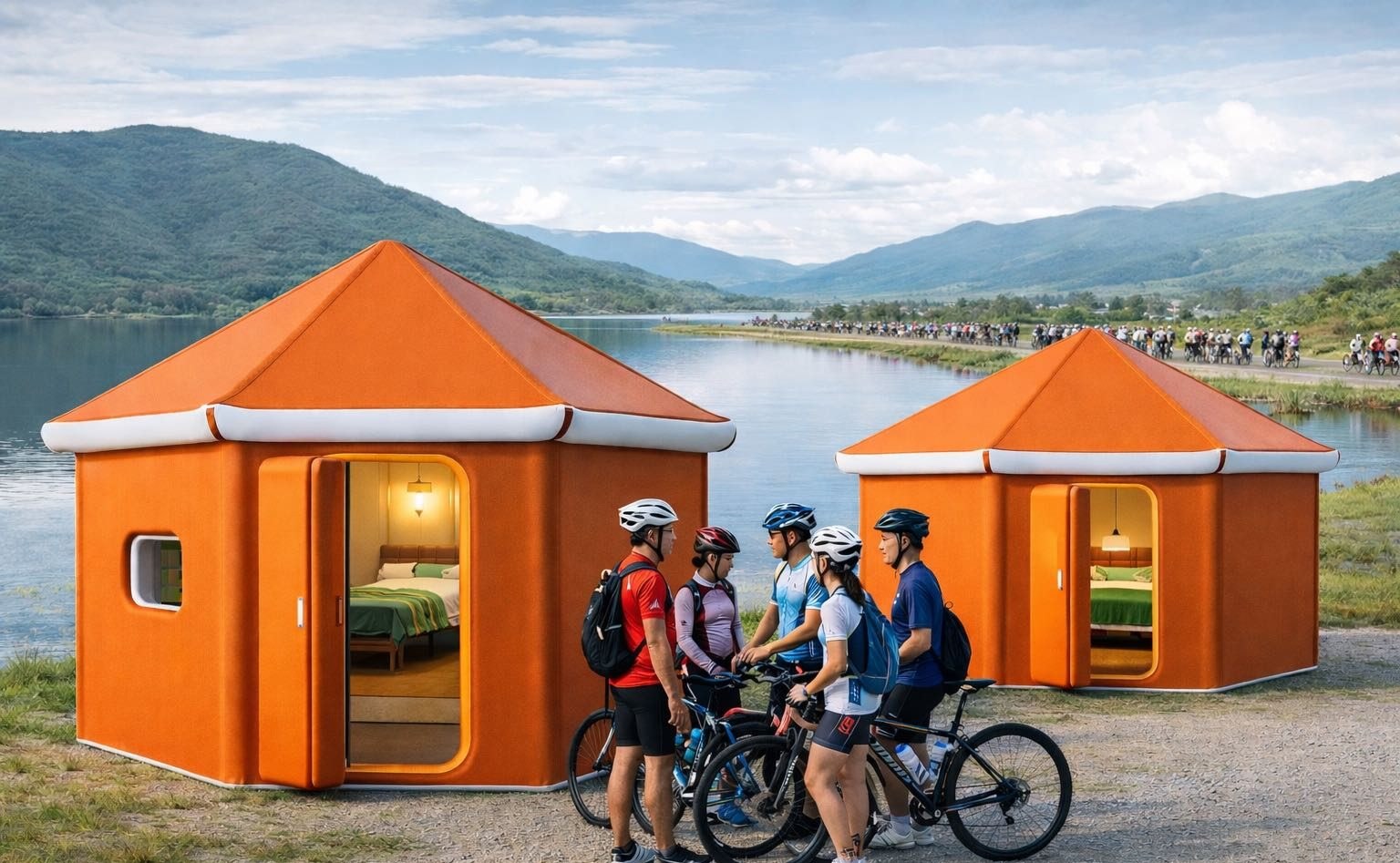

Orange dome-form membrane units by a lake with cyclists talking alongside
PMS / POS

Booking & POS system

Booking, front-desk payment and camp management in one system, sized for multi-unit operations.

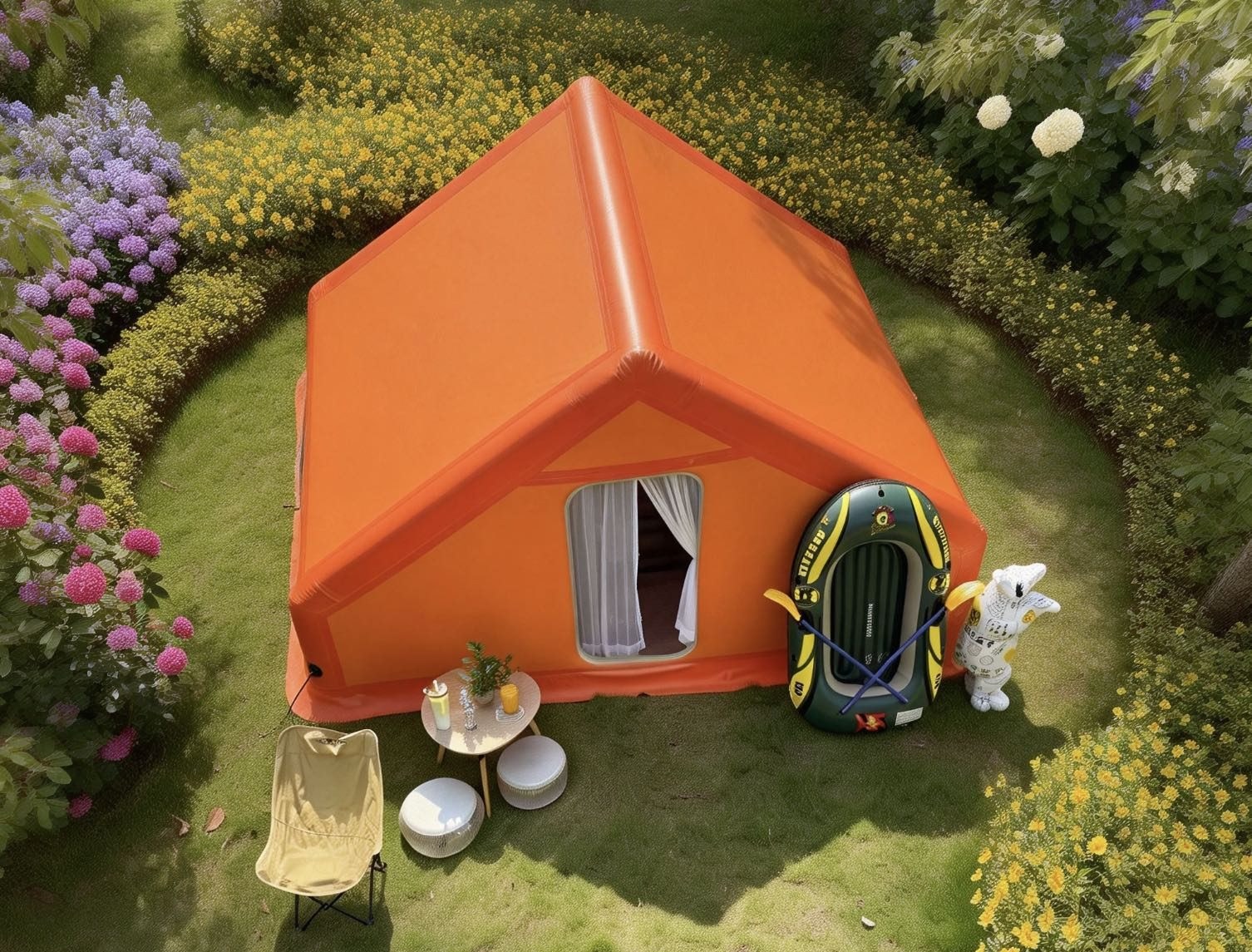

Orange inflatable membrane pod on garden lawn with outdoor furniture
SMART

Smart room control & lighting

Central control of lighting, climate and access, with architectural lighting for night-time presence.

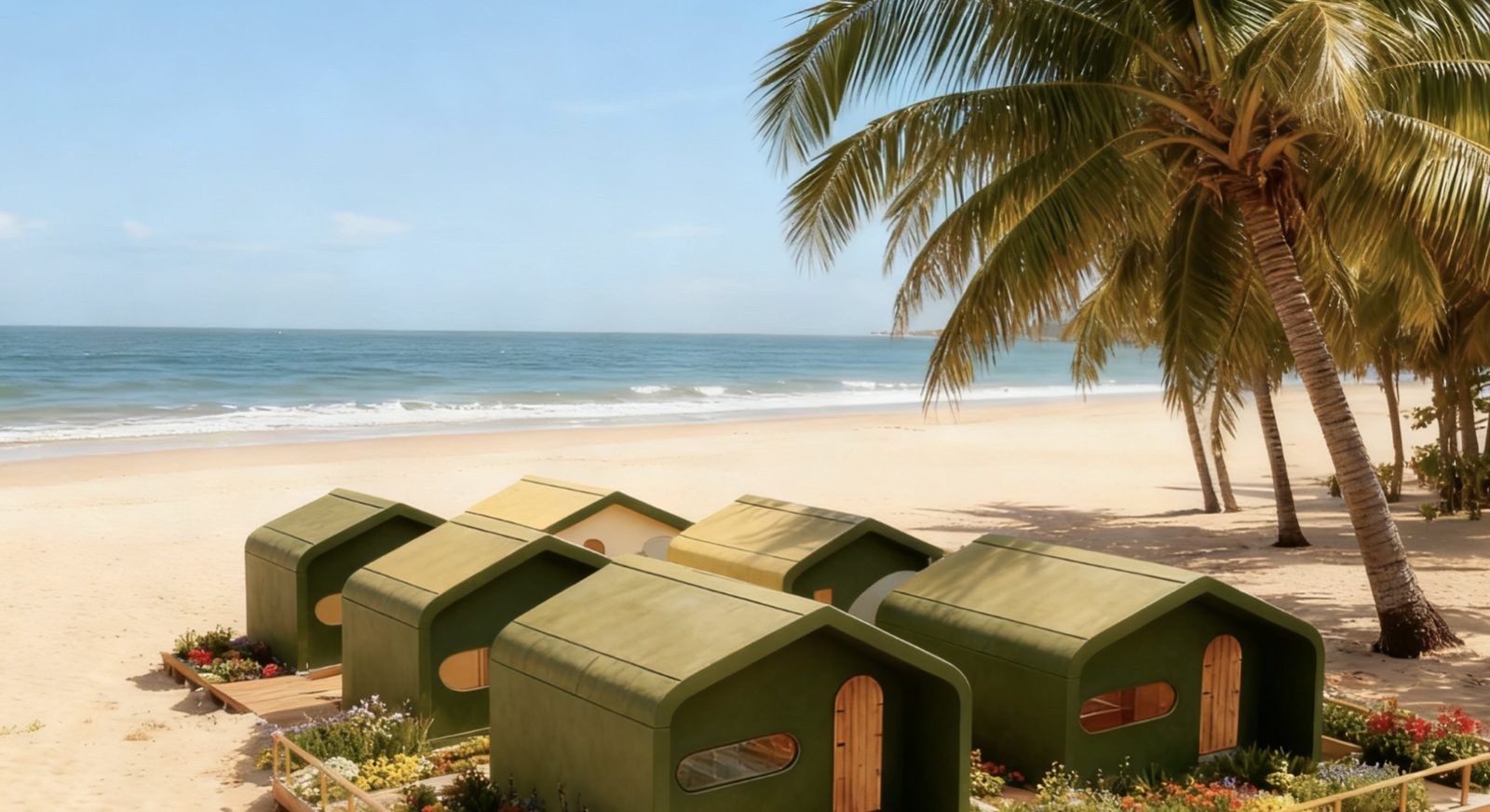

Olive inflatable membrane units lined up among palms on a beach
INFLATABLE

Inflatable furnishings

Tables, chairs, mattresses, sofas and pools built in the same material system and delivered with the structure.

Page updated 2026-08-26

Send us the project figures.
Quote and layout back within 48 hours.

Dimensions, quantity, destination port, intended use — those four are enough to price it. Custom structures and non-standard sizes are equally welcome; every unit ships with its own test data.
